I. The Overlooked Hidden Costs
A common issue in OEM projects is that docking stations perform normally during short-term testing but begin to malfunction after one to two hours of use in real-world office scenarios. Common symptoms include HDMI flickering, USB peripheral disconnection, and unstable PD charging.
These issues are rarely detected during simple factory ex-works testing. However, once the products enter the market, they rapidly evolve into support tickets and returns. For brand owners, even a 1% return rate is sufficient to erode profits and damage brand image.
Therefore, port count should not be the primary criterion for evaluating a docking station. Priority must be placed on the chipset solution, PCB layout, and thermal dissipation capabilities, as these directly determine the product's long-term stability.
II. Chipset Solutions Determine the Stability Ceiling
The Fundamental Difference Between Alt Mode and DisplayLink
Many low-cost docking stations utilize Realtek or VLI chips, achieving video output based on USB-C Alt Mode. These solutions are cost-effective and suitable for single-screen or consumer-grade applications.
However, in enterprise scenarios, these solutions have significant shortcomings, particularly regarding macOS multi-screen support. Since macOS does not support MST (Multi-Stream Transport), Alt Mode docks frequently trigger compatibility complaints in multi-monitor setups.
Why Enterprise Deployment Requires DisplayLink
DisplayLink / Synaptics chips bypass MST limitations through their architecture, enabling stable multi-screen output on macOS. This is critical for hy-brid work environments.
In OEM projects, chipset recommendations should be based on the client's actual operating system environment rather than just spec sheets. Avoid blindly applying generic reference designs; instead, ensure protocol-level adaptation for Thunderbolt 3/4 and USB4 hosts.
III. Solving "Overheating" from an Engineering Perspective
Overheating is the Root Cause of Most Failures
HDMI flickering and PD dropouts are often caused by thermal runaway. Docking stations have a high thermal density, concentrating PD chips, main controllers, and display chips in a small space.
PCB Design is the First Line of Defense
Physically isolate high-heat chips through PCB layout to prevent heat source accumulation, and optimize copper tracing to improve heat dissipation efficiency.
Thermal Materials Determine the Outcome
Utilize aluminum alloy casings combined with thermal silicone pads to conduct heat directly from critical ICs to the exterior. Internal testing standards include:
- 100W PD full load
- HDMI 4K@60Hz output
- Multiple peripherals connected
- Continuous operation for 48 hours
- Surface temperature < 45°C
IV. Port Reliability and Power Logic
Type-C Insertion Life Cannot Be Ignored

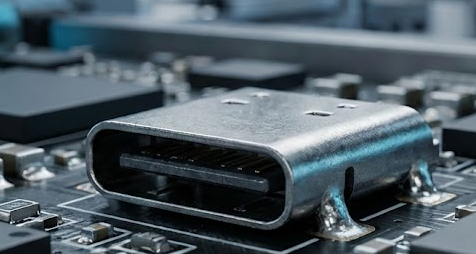

Select reinforced mid-mount (sinking) Type-C receptacles that have passed 10,000-cycle insertion tests to reduce the risk of contact failure after long-term use.
Dynamic Power Distribution Prevents Cut-offs
Implement Dynamic Power Distribution to ensure that host power priority remains unaffected when high-power peripherals are connected, fundamentally reducing PD dropout issues.
V. Conclusion: Stability Equals Brand Profit
From an OEM perspective, a stable docking station means lower RMA rates, reduced after-sales costs, and stronger brand competitiveness.
Partner with PURPLELEC for USB-C docking station OEM/ODM services based on enterprise-grade chipset solutions.
To control risk before mass production, it is recommended to conduct teardown evaluations or sample testing rather than attempting to remediate issues after they appear in the market.
